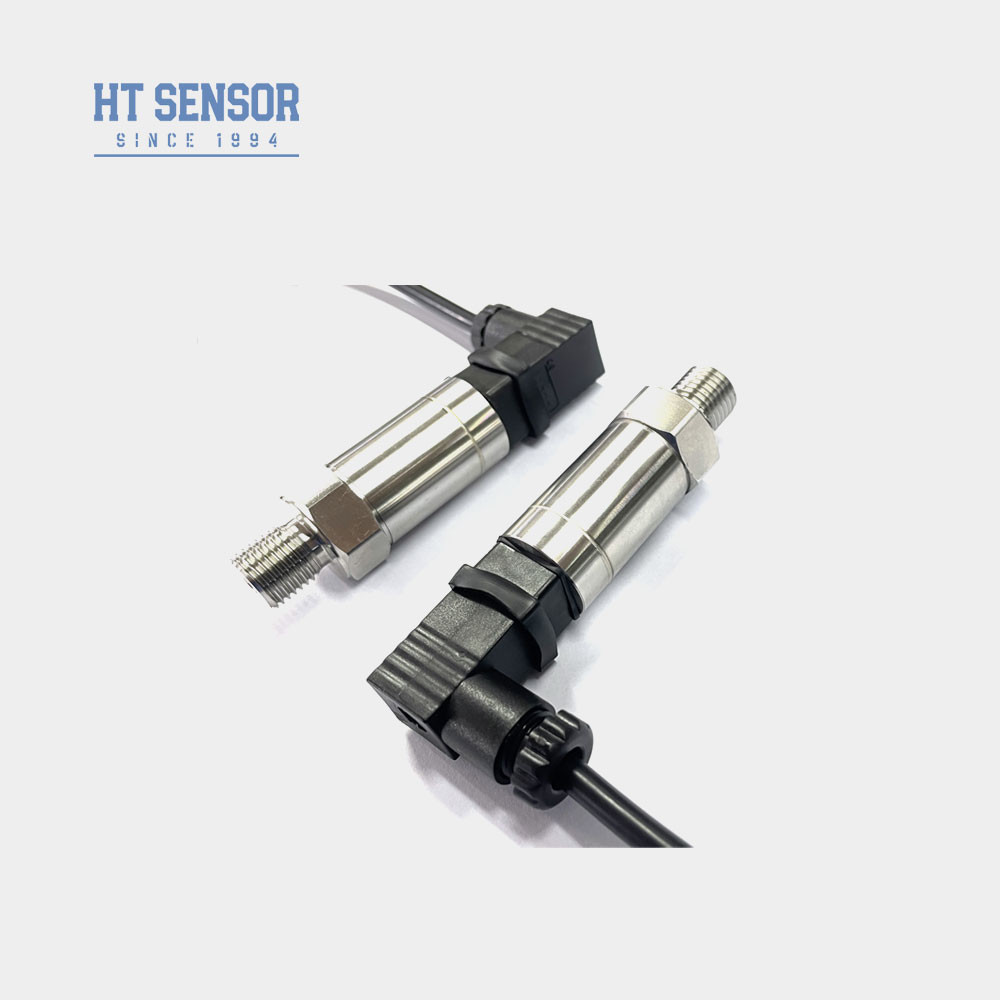

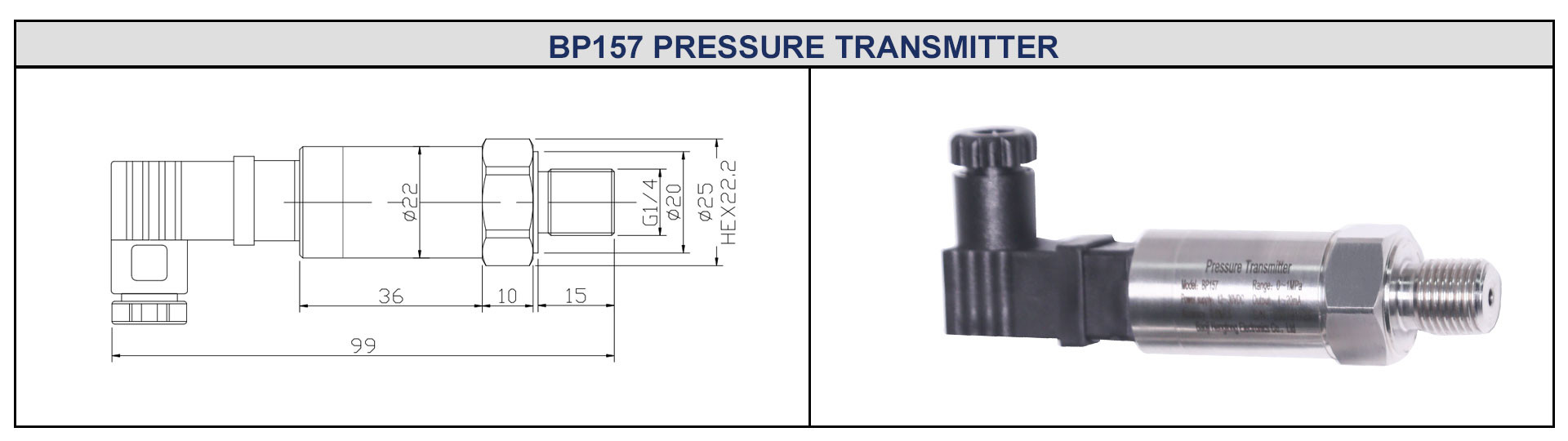

BP157 mini DIN Industrial pressure sensor transmitter uses the our
HT diffused silicon pressure sensor core as the signal measurement
element. Our self-developed PCB convert sensor signals to standard
output signals. Products are strictly controlled for each process
detail, parts, semi-finished products, finished products are
strictly tested and aging screening to ensure stable and reliable
performance.In short, industrial pressure sensors are a
top-of-the-line product that offers high precision, robustness and
versatility for a wide range of industrial applications. Its
advanced technology, durable construction and reliable performance
make it an important tool for monitoring and controlling pressure
levels in various industries.
Product Features of mini DIN Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of mini DIN Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with
316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum,
chemical, metallurgy, power generation, and hydrology.
| Performance Parameters of mini DIN Industrial pressure sensor transmitter: |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
1. When selecting the product, please ensure that the medium to be
measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type
products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the
power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended
that users install lightning protection devices on-site and ensure
that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring
is -20ºC to 250ºC. When the product's operating temperature is
below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials.
If not specified, it will be supplied with polyethylene cable
material. If you require a different cable material, please specify
it in the order.
7. For special requirements such as strong vibration, instantaneous
impact force, strong electromagnetic or radio frequency
interference, please inform our company and specify them in the
order.
| Order Guide |
| BP15X | Analog Pressure Transmitter |
| Code | Outline Construction |
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector |
| Measurement Range | 0kPa ~ 10kPa…5MPa |
(0-X)Kpa
or MPa | X: Indicates the Actual Measuring Range |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal | |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
FAQ:1. Q: What are the features of your pressure sensor transmitters?A: High precision, durability, and excellent performance.
Customization available.2. Q: Can I customize special specifications?A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service3. Q: What is your production capacity?A: Our manufacturing facilities can produce up to 30,000 pressure
sensor transmitters per month, so we are fully capable of meeting
the needs of large-scale orders. However, it is advisable to
contact our sales team in advance to ensure smooth production and
delivery scheduling.4. Q: What's the typical delivery period?A: 5~8 working day for standard models. Customized products may
vary.5. Q: How are the products priced? Any discounts?A: Competitive pricing with discounts for bulk orders or long-term
partners.6. Q: What is the warranty of your products? And after-sales
service?A: Our warranty time is 24 months after shipment, and our
after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
