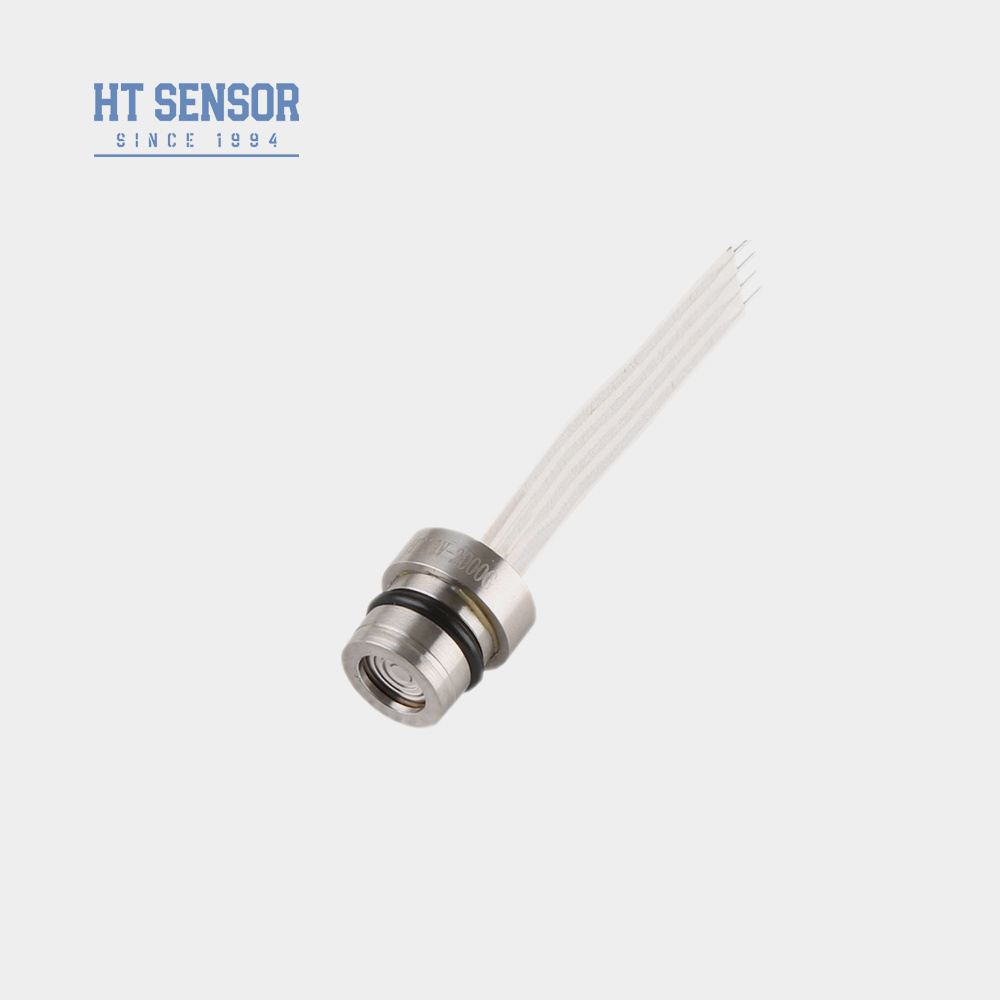

HT13 Silicon Piezoresistive Pressure Sensor
Introduction of silicon pressure sensor:
HT13 silicon pressure sensor is the latest design of oil-filled
diffused silicon pressure sensor, with high pressure impact 100,000
times is not bad, and anti-interference/erosion/freezing/impact,
high accuracy and stability. All stainless steel with inductive
pressure film. The pressure response is faster and more sensitive.
Specially designed small diameter pressure sensor,For a high
quality pressure controller, the most important thing is the
sensor. Adopt 316 stainless steel, high precision CNC, import seal.
Product Features of silicon pressure sensor:- Utilizes advanced technology and is encapsulated in a 316L
stainless steel housing
- Wide measuring range 0~350KPa~60MpaS
- High reliability and excellent stability
- Various threaded interfaces available for selection
Applications of silicon pressure sensor:- Suitable for measuring non-corrosive gas and liquid pressure with
316L stainless steel compatibility
- Compact design, ideal for applications with limited space
- Used in process control systems for monitoring and controlling
pressure
- Commonly used in refrigeration systems and air compressors for
pressure measurement
Electrical performance of silicon pressure sensor:- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance:3KΩ~6KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:Gold-plated Kovar pins or 100mm
high-temperature wires

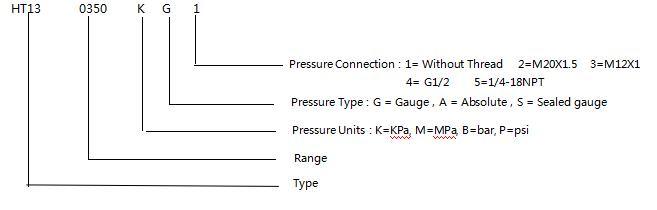

| Performance Parameters of silicon pressure sensor: |
| Measurement Range | Gauge(G) | 350KPa,1000KPa,2000Kpa |
| Absolute(A) | 350KPaA,700KPaA,1000KPaA,2000KPaA |
| Sealed(S) | 3500KPaS,7MPaS,10MPaS,20MPaS,40MPaS,60MPa |
| Typ | Max | Unit |
| Linearity | ±0.15 | ±0.3 | %F.S |
| Repeatability | 0.05 | 0.1 | %F.S |
| Hysteresis | 0.05 | 0.1 | %F.S |
| Zero Offset Output | 0±1 | 0±2 | mV |
| Full Scale Output | 100±10 | 100±30 | mV |
| Zero Offset Temp. Drift | ±0.5 | ±1 | %F.S |
| Full Scale Temp. Drift | ±0.5 | ±1 | %F.S |
| Compensated Temp. | 0~70 | ºC |
| Operating Temperature | -20~80 | ºC |
| Storage Temperature | -40~125 | ºC |
| Allowable Overload | Take the smaller value between 3 times the full scale or 80MPa | |
| Burst Pressure | 5X the full scale | |
| Long-term Stability | 0.2 % | F.S/Year |
| Diaphragm Material | 316L | |
| Insulation Resistance | ≥200MΩ 100VDC | |
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |
| Shock | 100g,11ms | |
| Response Time | ≤1ms | |
| O-ring Seal | Nitrile rubber or Fluoro rubber | |
| Filling Medium | Silicon Oil | |
| Weight | about 15g | |
| The parameters are tested under the following conditions: 1.5mA @
25°C |
| Outline Construction |
| type1 |  |
| type2 |  |
| Electrical connection and compensation |
|
1. Pay attention to the fit between the core size and the
transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned
vertically and apply even pressure to avoid jamming or damaging the
compensation plate.
3. If the measured medium is not compatible with the core diaphragm
and the housing material (316L), special instructions should be
provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects
to prevent damage to the core due to diaphragm deformation or
piercing.
5. Keep the pressure port of the gauge pressure core open to the
atmosphere and prevent the entry of water, water vapor, or
corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on
the actual core for reference.
