The BP156 mini Industrial pressure sensor transmitter is a compact
rod-shaped pressure transmitter. It utilizes a high-reliability
silicon piezoresistive pressure sensor as its sensitive core, and
undergoes temperature compensation, digital circuit correction, and
signal conditioning to output standard industrial applications and
network signals. Each product has undergone meticulous design,
parts screening, process verification and curing, cyclic loading
stress relief, aging, environmental simulation testing to ensure
stability and reliability.
Product Features of mini Industrial pressure sensor transmitter:
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of mini Industrial pressure sensor transmitter:
1. Pressure measurement of non-corrosive gases and liquids with
316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum,
chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of mini Industrial pressure sensor transmitter: |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
- 1. When selecting the product, please ensure that the tested medium
is compatible with the material in contact with the product.
- 2. When placing an order, please note that explosion-proof products
do not include digital display heads.
- 3. To ensure reliable operation of the product, it is recommended
to install lightning protection devices on site and ensure proper
grounding of both the product and power supply.
- 4. The rated operating temperature range of fluorine rubber O-rings
is -20℃~ 250℃. If the operating temperature of the product falls
below -20 ° C, EPDM O-ring seals should be selected instead.
- 5. By default, no connectors or cables are included; however, if
necessary, please communicate with your sales representative in
advance as there are three types of materials to choose from.
Unless specified otherwise, polyethylene cable materials will be
used. If a different cable material is required, please specify it
in the order form.
- 6. In case of special requirements such as strong vibration,
instantaneous impact force, or strong electromagnetic or RF
interference, please inform us and indicate this in your order.
| Order Guide |
| BP15X | Analog Pressure Transmitter |
| Code | Outline Construction |

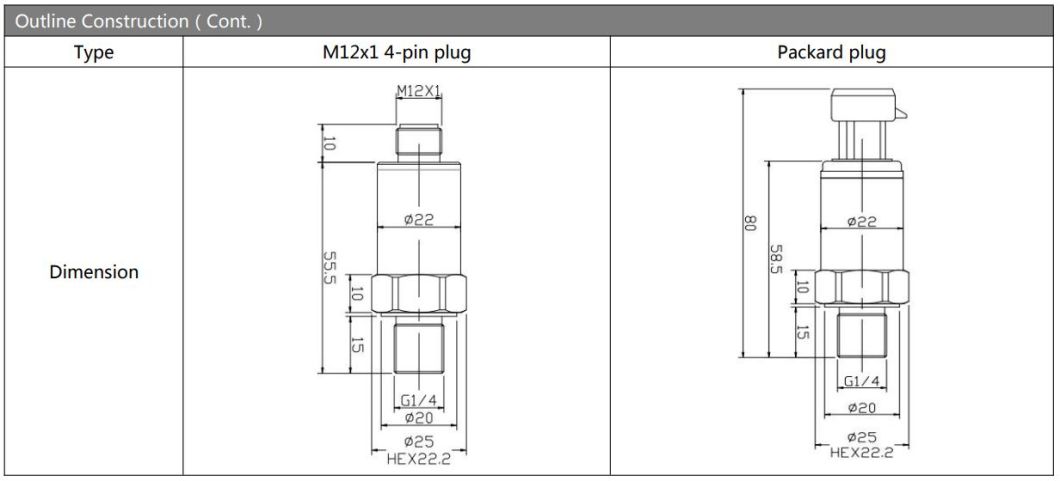

| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector |
| Measurement Range | 0kPa ~ 10kPa…5MPa |
(0-X)Kpa
or MPa | X: Indicates the Actual Measuring Range |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal | |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | | |
| Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
