19mm Diffused Silicon Pressure Sensor Piezoresistive Pressure
Sensor
Introduction of silicon pressure sensor:
HT19 piezoresistive silicon pressure sensor, the main component is
a high stability diffuse silicon sensing element. The sensing
package utilizes silicone oil to transfer pressure from a 316L
stainless steel diaphragm to the sensing element. Piezoresistive
pressure sensor adopts international advanced silicon pressure chip
with high stability and high precision, adopts sintering base with
optimized stress design, and is produced by SMT, gold wire bonding,
diaphragm welding, high vacuum oiling, pressure cycle stress
relief, high temperature aging, temperature compensation and other
processes. With more than 30 years of development, production
experience and technological innovation, the products have
excellent stability and performance, and are widely recognized by
users.
Product Features of silicon pressure sensor:
• Rugged, isolated stainless steel package
• Small size
• Reliable semiconductor technology
• Calibrated and temperature compensated
• Absolute and gage pressures
• Vacuum compatible, isolated sensors
• Low cost
Electrical Data of silicon Pressure sensor
Supply:1.5mADC Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage:500VAC between the housing and electrical
connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
Performance Specification of silicon Pressure sensor
| Parameters | Range:0~10KPa,20KPa, 35 KPa,100 KPa,200 KPa,350 KPa, 700 KPa, 1MPa,
2MPa,3.5 MPa,7 MPa,10 MPa,20 MPa,40 MPa,60 MPa,100 MPa |
| Typical | Max. | Units |
| Pressure Non-linearity | ±0.15 | ±0.3 | %F.S |
| Pressure Repeatability and Hysteresis | 0.02 | 0.05 | %F.S |
| Zero Output | 0±1 | 0±2 | mV |
| Span Output | ≤20KPa | 50±10 | 50±30 | mV |
| ≥35 KPa | 100±10 | 100±30 | mV |
| Temperature Error-Zero | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S |
| Temperature Error-Span | ≤20KPa | ±1 | ±2 | %F.S |
| ≥35 KPa | ±0.5 | ±1 | %F.S |
| Proof Pressure | 3X Rated range or 120MPa, whichever is less | ------- |
| Operating Temperature Range | -20~80 | ℃ |
| Compensated Temperature Range | 0~70, 0~50(Range≤20KPa) | ℃ |
| Storage Temperature Range | -40~125 | ℃ |
Note :Above parameter under condition:Supply: 1.5mA Temperature:
25℃

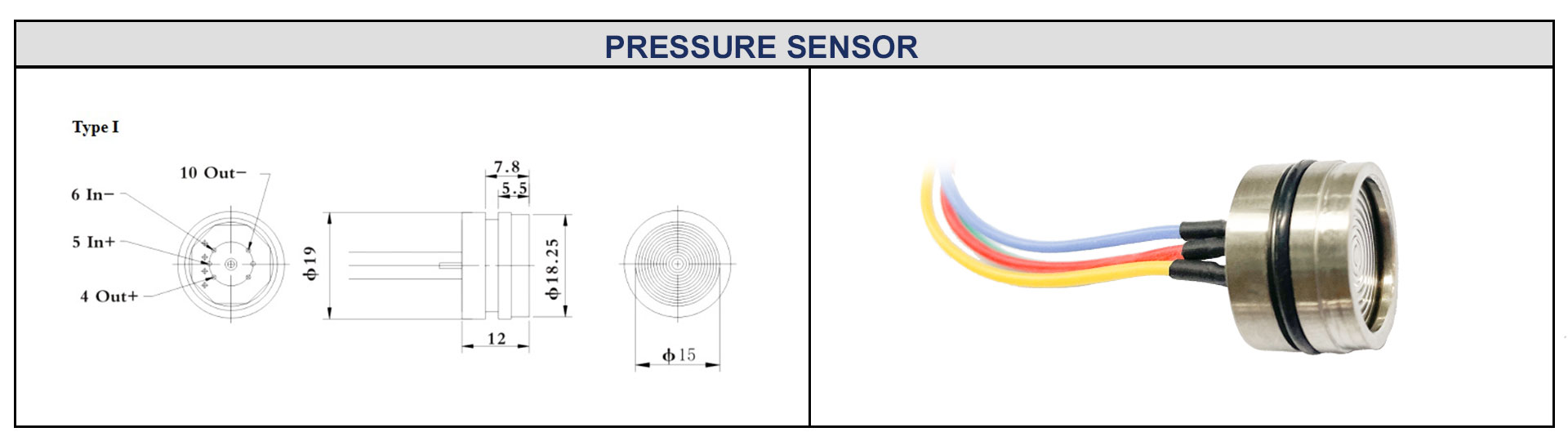

Dimension
FQA:
1.Q: What are the features of your pressure sensor?
A: High precision, durability, and excellent performance.
2.Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs.
We provide OEM and ODM service
3.Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure
sensors per month, so we are fully capable of meeting the needs of
large-scale orders. However, it is advisable to contact our sales
team in advance to ensure smooth production and delivery scheduling
4.Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may
vary.
