HT20 Differential Pressure Sensor
Introduction of differential silicon pressure sensor:
The HT20 differntial silicon pressure senor is a silicon
piezoresistive differential pressure sensor with a core of highly
stable diffused silicon element. The core is enclosed in a 316L stainless steel housing, and the pressure is transmitted through a
stainless steel diaphragm and sealed silicon oil to the sensitive chip. The
sensitive chip does not directly contact the measured medium, forming a fully solid-state
structure for pressure measurement, enabling precise measurement of differential
pressure. Therefore, this product can be applied in various scenarios that
require differential pressure measurement, including harsh and corrosive
environments.
Product Features of differential silicon pressure sensor:
- Stable and reliable performance
- High resistance to static pressure
- Cost-effective
- Utilizes silicon piezoresistive oil-filled pressure-sensitive
element
Electrical performance of differential silicon pressure sensor:- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance:3KΩ~6KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:Gold-plated Kovar pins or 100mm
high-temperature wires
| Performance Parameters of differential silicon pressure sensor: |
| Measurement Range | 10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa |
| Typ | Max | Unit |
| Linearity | ±0.15 | ±0.3 | %F.S |
| Repeatability | 0.05 | 0.1 | %F.S |
| Hysteresis | 0.05 | 0.1 | %F.S |
| Zero Offset Output | 0±1 | 0±2 | mV |
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | |
| ≥35kPa | 100±10 | 100±30 | mV | |
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | |
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | |
| ≥35kPa | ±0.5 | ±1 | %F.S | |
| Compensated Temp. | ≤20KPa | 0~50 | ºC | |
| ≥35kPa | 0~70 | ºC | |
| Operating Temperature | -20~80 | ºC | |
| Storage Temperature | -40~125 | ºC | |
| Allowable Overload | Take the smaller value between 3 times the full scale or 4MPa | | |
| Burst Pressure | 5X the full scale | | |
| Long-term Stability | 0.2 % | F.S/Year | |
| Diaphragm Material | 316L | | |
| Insulation Resistance | ≥200MΩ 100VDC | | |
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | | |
| Shock | 100g,11ms | | |
| Response Time | ≤1ms | | |
| O-ring Seal | Nitrile rubber or Fluoro rubber | | |
| Filling Medium | Silicon Oil | | |
| Weight | ~45g | | |
| The parameters are tested under the following conditions: 1.5mA @
25°C | |

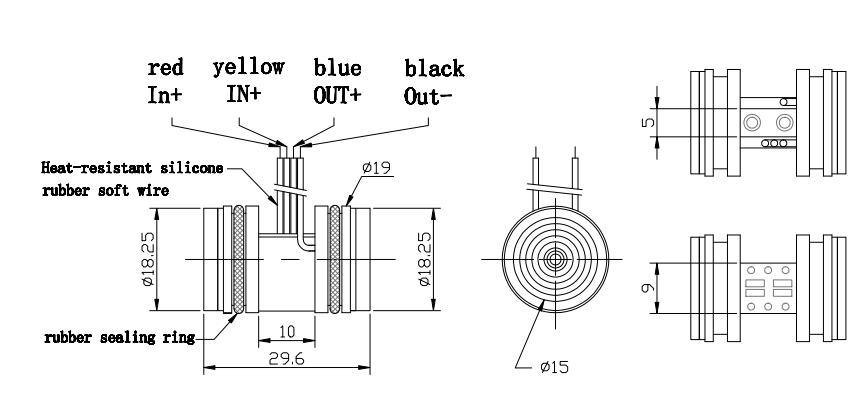

| Outline Construction |
| Dimension |  |
| Notes:The outgoing end is the positive terminal. If there are any
changes in the wire colors, please refer to the label attached to
the sensor for accurate information |
| Electrical connection and compensation of differential silicon pressure sensor |
|
